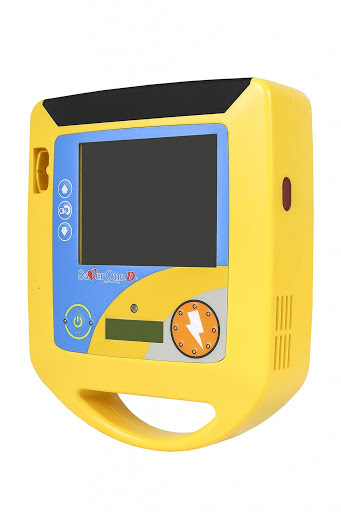

Saver One D semi-automatic defibrillator rechargeable with cardiogram monitor - 360J SVD-B0005

Prospectus: SAVER-ONE-D

Saver One 360J: Maximum energy at 360J
Adult shock protocol (200-250-360J)
Pediatric shock protocol (50J fixed with pediatric pads)

• • Biphasic defibrillator

• • Portable – small volume – weight 2.08Kg

• • Operates with rechargeable battery
  • Operates with rechargeable battery

• • AED Protocols: Adult 200 – 250 -360J (360J version)

• • Also suitable for pediatric use.
• • Functionality guaranteed by daily self-test. (Extensive self-test of all main components such as battery, internal electronics, energy charging and disarming, shock and ECG calibration systems is automatically performed daily, monthly and semi-annually. Daily test data is stored by the device as a .txt text file (AED1LOG), which is easily read by anyone computer.
    Further tests are also performed after each battery insertion and each time the device is turned on. A visual indicator (green / red status indicator) provides effective notification to users, depending on whether it is in operating mode and ready for rescue).

• • The defibrillator is simple to use and has voice and visual instructions for use as well as instructions for performing cardiopulmonary resuscitation (CPR) in the Greek language, in accordance with the current ERC Guidelines algorithm.

• • It has an automatic ECG analysis circuit, recognition of arrhythmias that require the application of defibrillation, automatically charges the defibrillation circuits and notifies the operator of the need for defibrillation, which will be performed with just the press of a button.

• • It has an indicator for the battery charge status.

• • The charging time to maximum energy is less than 9 sec.

• • It has an LCD screen on which the patient’s ECG, various warning messages and alarms are displayed.

• • It has automatic and manual periodic checks of the device’s readiness with a corresponding visual indication.

• • It has a circuit to control the conductivity of the adhesive electrodes (pads) with regard to their contact gel.

• • It has a storage system for at least the last resuscitation incident, with the ability to transfer, store and analyze it on a PC, through special software that accompanies the device. Memory: 128MB – recording of 6 hours of audio – cardiogram – event.

• • It is accompanied by a carrying case which includes a pair of disposable adhesive electrodes (pads), as well as all other accessories for its full operation.

• • The device can be mounted on the wall and is accompanied by a wall-mounted support base.

• • The offer must contain a detailed technical description of the offered model, as well as be accompanied by an operating manual and a technical manual. translated into Greek.

• • We have a responsible SERVICE with sufficient components, spare parts and consumables for at least ten (10) years.

• • It has CE mark certification and complies with the latest AHA/ERC 2015 guidelines.

• • It has ISO certification from the manufacturer while at the same time our company has ISO certification.

• • Warranty six (6) years of good operation.

During defibrillation, the screen displays:

1. the adult or pediatric protocol being used
2. the mode of use (AED, ECG or Manual)
3. counts the fibrillation and the number of shocks
4. the elapsed rescue time

• the heart rate (bpm)
• the impedance (Ohm)
• the energy level to be delivered (joules)
• icon to allow or not to touch the patient
• ECG waveform
• the R wave detection in Manual Synchronous
• a charging bar graph if the device is charging
• a CPR bar graph and cycle countdown

The Saver One defibrillator includes in the package:

• • Defibrillator with rechargeable Li-Ion (lithium) battery capable of delivering up to 110 shocks in 360J

• • Charging base and cable

• • Adult Electrode Pads
• • Instructions for use

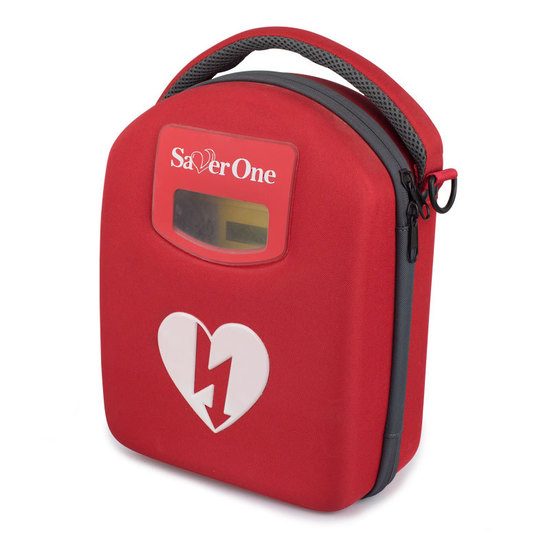

  • Carrying bag

  Battery life: 2 years or 300 recharges (at 20°C and 45% humidity).

  Caution: It is recommended to recharge the battery at least every 4 months when the defibrillator is not in use.

  The Saver One can store ECG, voice, event and environmental recordings in the internal memory or on the memory card (SD card) to read it on your computer with special software. The Saver One AED has an internal memory that records up to 6 hours of ECG data. To export data from the internal memory, you can simply connect the AED directly to a computer using a USB cable. You can export the AEDLOG via the SD card, which provides a .txt file.

  Display indications:
  – “Adult/Child” for pads in use
  – “Do not touch patient” move away for electric shock
  – “You can touch patient” electric shock is over
  – “Pads” in case they are not placed correctly
