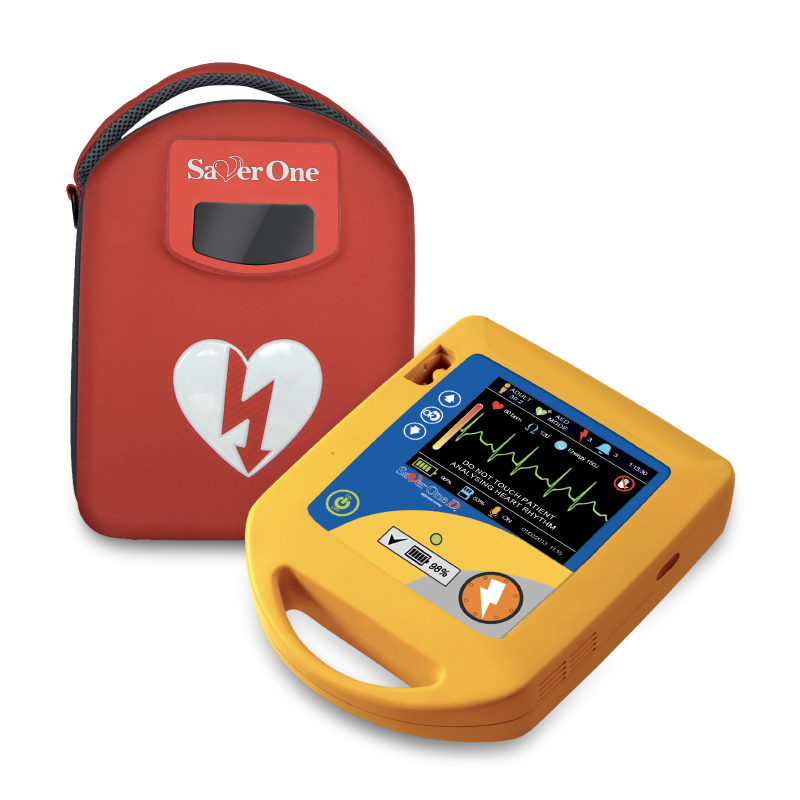

Semi-automatic defibrillator Saver One D single battery monitor with cardiogram - 200J SVD-B0004

Prospectus: SAVER-ONE-D

1. Saver One 200J: Maximum energy at 200J
Adult shock protocol (150-200-200J)
Pediatric shock protocol (50J fixed with pediatric pads)

• • Biphasic defibrillator

• • Portable – small volume – weight 2.08Kg

• • Operates with a non-rechargeable battery, and delivers at least 250 defibrillations at the maximum energy of 200J.

• • AED Protocols: Adult 150 – 200 – 200J (200J version)

• • Also suitable for pediatric use.
• • Functionality guaranteed by daily self-test. (Extensive self-test of all main components such as battery, internal electronics, energy charging and disarming, shock and ECG calibration systems is automatically performed daily, monthly and semi-annually. The Daily test data is saved by the device as a .txt text file (AED1LOG), which is easily readable by any computer. Further tests are also performed after each battery insertion and each time the device is turned on. A visual indicator (green / red status indicator) provides effective notification to users, depending on whether it is in operating mode and ready for rescue).

• • The defibrillator is easy to use and has voice and visual instructions for use as well as instructions for performing cardiopulmonary resuscitation (CPR) in Greek, in accordance with the current ERC Guidelines algorithm.

• • It has an automatic ECG analysis circuit, identification of arrhythmias requiring defibrillation, automatically charges the defibrillation circuits and notifies the operator of the need for defibrillation, which will be performed with just the press of a button.

• • Battery life 5 years, in standby mode four (4) years. It has an indication of the battery charge status.

• • The charging time to maximum energy is less than 9 sec.

• • It has an LCD screen on which the patient’s ECG, various warning messages and alarms are displayed.

• • It has automatic and manual periodic checks of the device’s readiness with a corresponding visual indication.

• It has a control circuit for the conductivity of the adhesives electrodes (pads) regarding their contact gel.

• • It has a storage system for at least the last resuscitation incident, with the ability to transfer, store and analyze it on a PC, through special software that accompanies the device. Memory: 128MB – recording of 6 hours of audio – cardiogram – event.

• • It is accompanied by a carrying case which includes a pair of disposable adhesive electrodes (pads), as well as all other accessories for its full operation.

• • The device can be mounted on the wall and is accompanied by a wall-mounted support base.

• • The offer must contain a detailed technical description of the offered model, as well as be accompanied by an operating manual and a technical manual. translated into Greek.

• • We have a responsible SERVICE with sufficient components, spare parts and consumables for at least ten (10) years.

• • It has CE mark certification and complies with the latest AHA/ERC 2015 guidelines.

• • It has ISO certification from the manufacturer while at the same time our company has ISO certification.

• Warranty six (6) years of good operation.

During defibrillation, the screen displays:

1. the adult or pediatric protocol being usedit is
2. the mode of use (AED, ECG or Manual)
3. measures the fibrillation and the number of shocks
4. the rescue time elapsed
5. the heart rate (bpm)
6. the impedance (Ohm)
7. the energy level to be given (joules)
8. icon to allow or not to touch the patient
9. ECG waveform
10. the detection of the R wave in Manual Synchronous
11. a charging bar graph if the device is charging
12. a CPR bar graph and cycle countdown

The Saver One is included in the package:
• Defibrillator with LiSOCI2 battery (capable of giving up to 300 shocks at 200J or 35 hours of continuous monitoring or 160 at 360J)
• Adult Pads
• Instructions for use
• Carrying case

The Saver One can store ECG, voice, event and environmental recordings in the internal memory or on the memory card (SD card) for reading on your computer with special software. The Saver One AED has an internal memory that records up to 6 hours of ECG data. To export data from the internal memory, you can simply connect the AED directly to a computer using a USB cable. You can export the AEDLOG via the SD card, which provides a .txt file.

Display indications:
– “Adult/Child” for pads in use
– “Do not touch patient” move away for electric shock
– “You can touch patient” electric shock is over
– “Pads” in case they are not placed correctly
