Smarty Saver Geo Automatic Defibrillator SM6-B1006

The automatic model proceeds in 3 steps before defibrillation:
1. checking the patient’s ECG
2. if a pulse is detected, then the device automatically starts charging the defibrillator capacitor
3. the defibrillator by voice prompts the user to move away so that the defibrillator can be delivered
What is the difference between Smarty Saver and Smarty Saver Geo:
The Smarty Saver Geo defibrillator has a metronome with indicators for the quality and frequency of compressions, telling the rescuer to change or keep his rate with the help of the CPR Quality Sensor (autonomy of 2 hours of continuous use) which when in operation connects automatically with the defibrillator via Bluetooth.

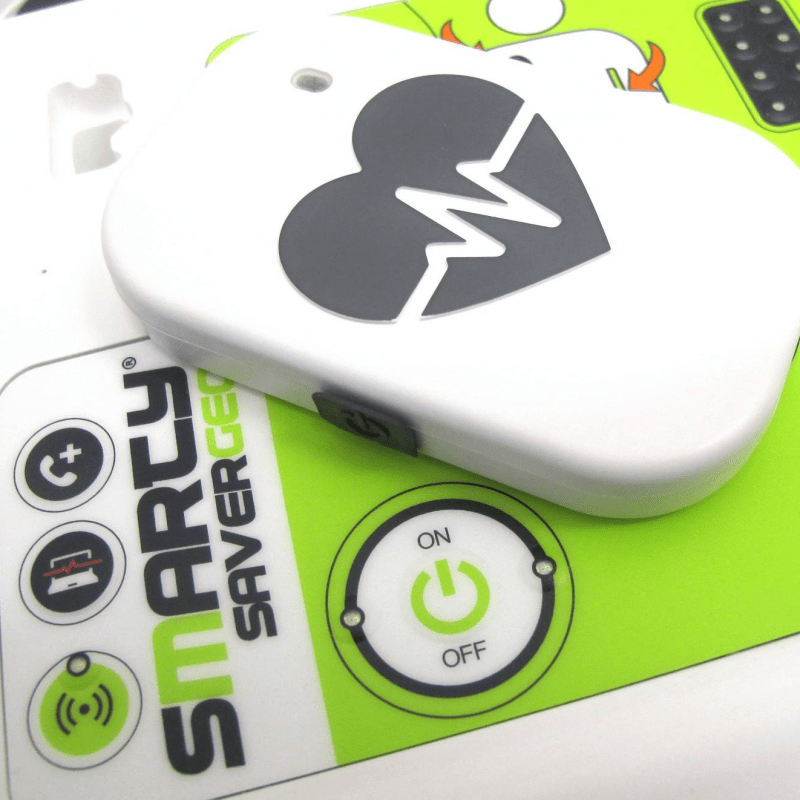

The CPR Quality Sensor is designed to optimize the completion of CPR by providing simple and accurate responses to the rescuer, in real time! The LED bar placed on the AED keypad will indicate compression depth accuracy while the acoustic metronome will indicate the correct compression frequency, along with voice prompts.
The built-in SIM card allows the device to transmit and receive data over the mobile network. The battery power supply dedicated to the geolocation unit is autonomous and in addition to that dedicated to the basic operation of the defibrillator. All information is sent from the device to the AMISAVERCLOUD PLATFORM, which is designed to monitor and control multiple defibrillators remotely via any web browser and internet-connected device. Among the information and data sent to the platform, the defibrillator can transmit the ECG in real time, so a professional operator will be able to see and examine the ECG remotely on the AMISAVERCLOUD PLATFORM. Finally, through the exclusive VIVO BUTTON located on the keypad, the operator will be free to call the local EMS directly directly from the defibrillator!
Find more information about AmiSaverCloud: SMARTY Saver Geo – Cloud
Advantages:
• The operator will be able to adjust the intensity and speed of compressions to optimize CPR via a metronome
• Light and easy to carry – 1.6 kg including the battery with dimensions of 20x21x7cm. It has a tilting carrying handle.
• No pediatric electrodes are needed for defibrillation in children under 8 years of age. Instantly switch from adult to pediatric mode with just the push of a button
• Easy to use – suitable for use by both trained and untrained rescuers
• Economical – making it easily accessible to the public
• Reliable and durable – 1 meter drop test – Dustproof and waterproof with an IP 56 resistance rating capable of challenging various harsh environments.
Features:
• BTE waveform defibrillation with energy up to 200J in adults (defibrillation protocol 150J – 200J – 200J) and up to 50J in children
• Charging time from defibrillation alarm(IEC60601-2-4): less than 9sec for 150J shock and less than 12sec for 200J shock
• Charging time from the moment of ECG analysis (IEC60601-2-4): less than 13sec for 150J shock and less than 16sec for 200J shock
• Daily automatic diagnostic function tests
• Cardiogram analysis time: 4-15sec
• Resistance: 20 -200Ω
• Sensitivity: 97%
• Specificity: 99%
• Auto Buttons: 5 (ON/OFF, Patient Selection (Adult/Ped), Live Call, Send Live ECG)
• Weight: 1.7 kg including battery and PADS
• Dimensions: 200 x 213 x 71mm
• Dimensions and weight CPR Quality Sensor: 95x60x13mm – 50gr
• Battery: LiMnO2 12VDC-3000mAh with autonomy up to 200 cycles or 36 hours of cardiac analysis
• Battery life: up to 3 years
• Warranty: 5 years
Contents:
1. Smarty Saver Defibrillator
2. LiMnO2 battery

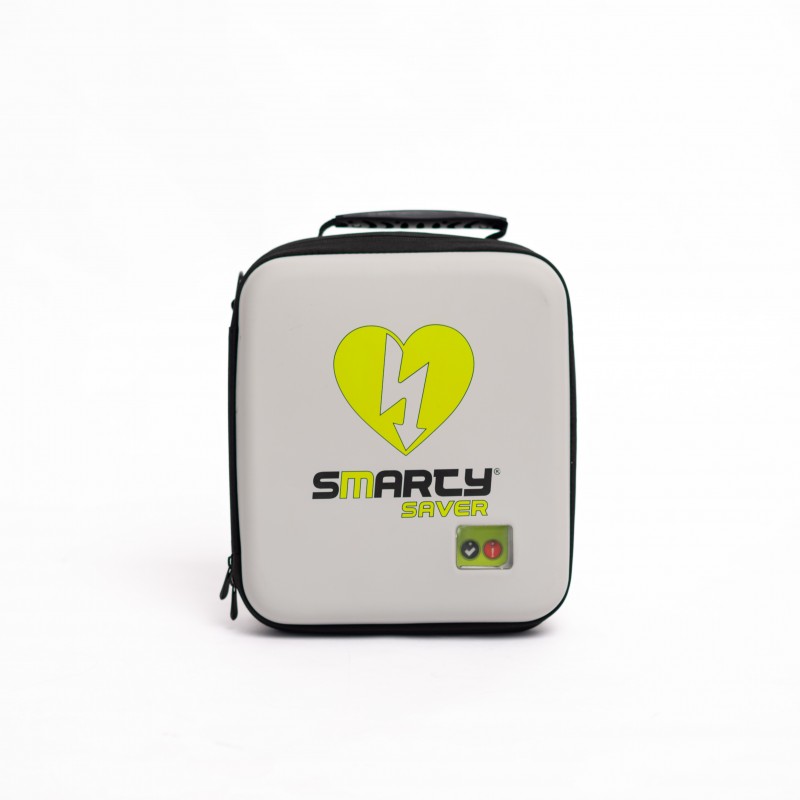

3. Carrying bag
4. Electrode stickers suitable for adults and children
5. Instructions for use
Code: SM6- B1006
Brochure: TDS_SMARTY-SAVER-GEO
Brochure (Greek): Smarty Saver Geo – Greek
