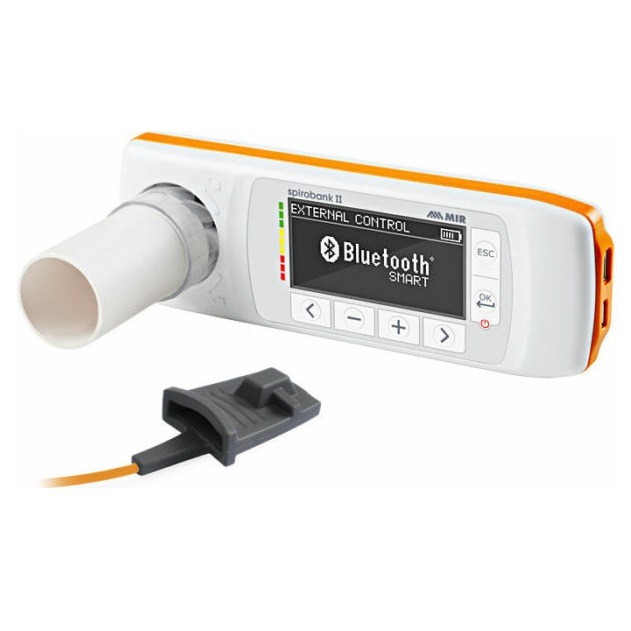

MIR Spirobank II Smart Spirometer with Oximeter + 60 Air Turbines

Brochure: https://harmanis.com.gr/wp-content/uploads/2026/04/Spirobank_II_Smart.pdf

TECHNICAL SPECIFICATIONS
Flow sensor: bidirectional digital turbine
Flow volume: 10 L
Flow range: ± 16L/s
Flow accuracy: ±5% or 200mL/s
Volume accuracy: ±3% or 50mL
Dynamic resistance at 12L/s: <0.5 cmH2O/L/s
Temperature sensor: semiconductor (0-45° C)
Memory capacity: 10,000 records
Power supply: Lithium battery 3.7 V, 1100 mA, rechargeable via USB.
6-key keyboard
Connectivity: USB, Bluetooth ® 2.1
Mouthpieces: external diameter 30 mm
Dimensions: 160 x 55 x 25 mm
Weight: approx. 140 g
Basic parameters to be recorded, always activated in Spirobank II: (all versions)
VC, IVC, IC, ERV, FVC, FEV1, FEV1%, PEF, FEF 25-75%, FET, EVOL (Extrapolated Volume), ELA (Estimated Lung Age),
Additional parameters activated at the user’s choice:
(versions: smart, advanced, advanced smart)
FEV1/FVC%, DTPEF (PEF rise time), FEV 0.5, FEV0.5/FVC%, FEV0.75, FEV0.75/FVC%, FEV2, FEV2/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, FEF25%, FEF50%, FEF75%, FEF 75-85, FIVC, FIV1, FIV1/FIVC%, FIF25%, FIF50%, FIF75%, R50, PIF, IRV, VT (instant volume), VE (minute ventilation), Rf, ti, te, ti/t-tot, VT/ti, MVV measured, MVV calculated.

Oximetry specifications:
SpO2 range: 0-99% SpO2 accuracy: ± 2%, tra 70-99 %SpO2
Heart rate range: 18-300 bpm.
Heart rate accuracy: ± 2 bpm, or 2%.
Adjustable alarms: ON-OFF, SpO2 & pulse range, finger removal, probe inserted, low battery
Offered with soft finger sensor (additionally other sensors are available, neonatal, pediatric, ear, reusable or non-reusable)

Recorded oximetry parameters:
Min-Max-Average SpO2, Pulse Rate Range-Media, test duration, T90% [time SpO2 <= 89%], T89% [time SpO2 <= 88%], Total Events SpO2, T40 (time Bradycardia with Frequency pulse <40 BPM), T120 (time Tachycardia with pulse Rate> 120 BPM)
