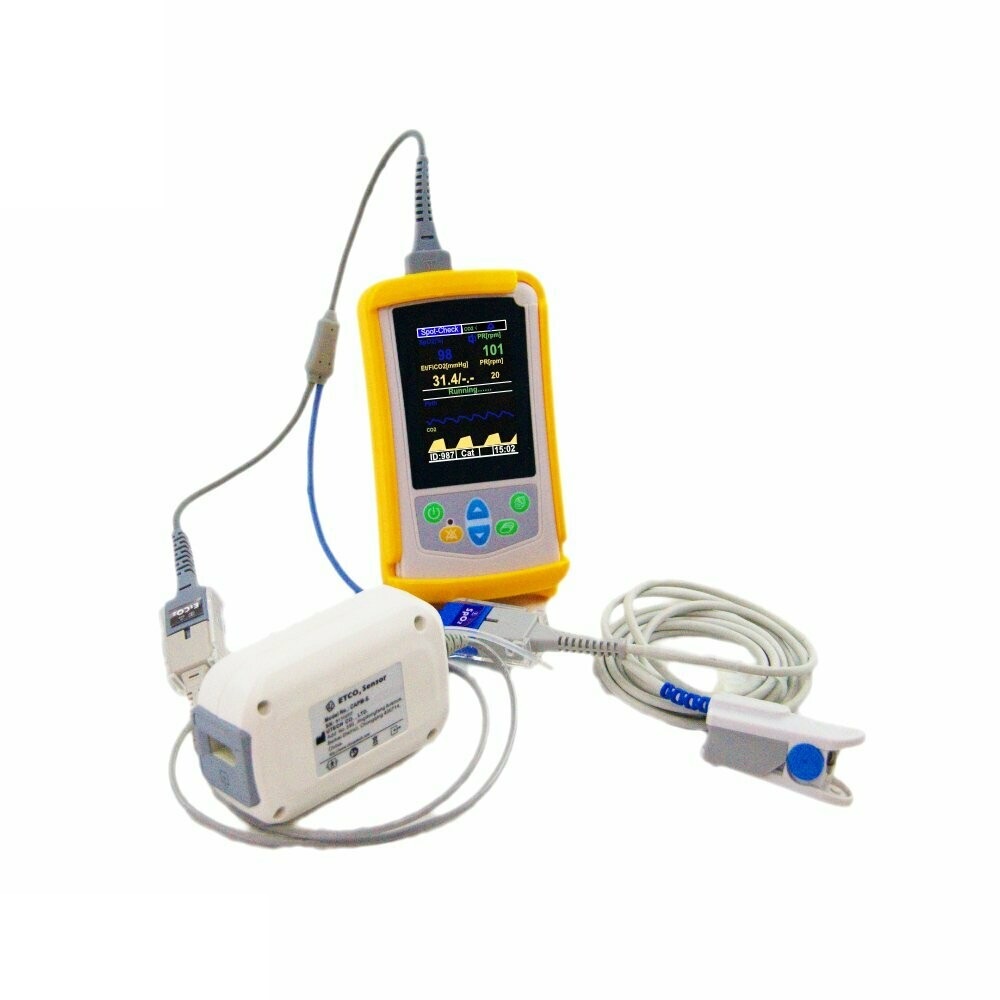

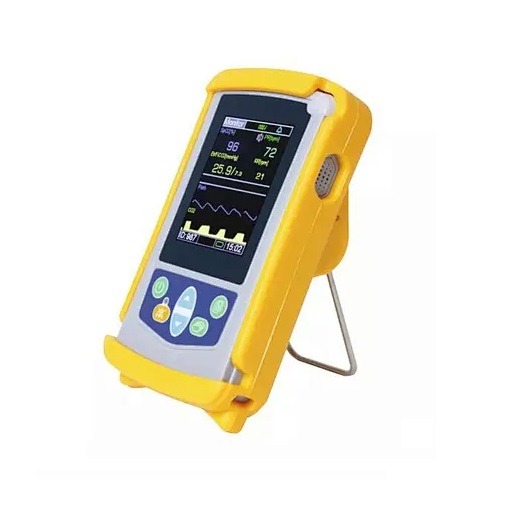

Portable Capnograph UT 100C SideStream
1.240,00 € WITH VAT
Availability: Immediate pickup / Delivery 1 to 3 days
The UT100C SideStream portable capnograph is responsible for on-site control, continuous, non-invasive monitoring or recording of oximetry (Sp02), pulse, pulse force, end-tidal ETCO2, FiCO2 and Respiratory Rate and performs pulsiography. The device is powered by battery or AC adapter. It can be used in the hospital, clinical setting, home care and during emergency ground transport.
Description
Features:
- Small and lightweight, ergonomically designed to fit comfortably in the palm of your hand
- Large 2.8-inch colorful display, bright, easy-to-read LCD screens showing SpO2, ETCO2 and pulse measurements, plethysmogram and trend table
- Screen rotation provides upright viewing for vertical or horizontal viewing positions
- The perfusion index indicates the strength of the arterial pulse signal
- Two measurement methods:
- Stop-check function: measuring data at intervals
- Monitoring function: measuring and storing data continuously
- Fast, reliable and accurate measurements for SpO2, ETCO2 and pulse
- 120 hours of file storage
- Visual and audible alarm
- Adjustable volume (including mute) with each pulse
- Patient information management. Patient information, such as identity, gender, and type, can be processed.
- USB interface. Data can be transferred to a computer via data line for storage, review and analysis.
- Low power consumption, long operating time (more than 20 hours)
- Automatic power off to save energy
- Uses 4 standard AA alkaline or Ni-MH batteries
- Low battery alarm. The low battery icon flashes when approximately 15 minutes of battery use remain.
- 4 display modes:
- Big screen mode
- Waveform display mode
- Trend table display function
- Horizontal display mode
- Multiple languages: English, French, Spanish, Germany, Chinese
- AC power connector. Optional for connecting to an AC power adapter
Technical Specifications:
Weight: 258 grams (9.1 ounces) with batteries
Dimensions: 13.5 cm × 7.5 cm × 2.8 cm
Alarm Categories: Patient Status and System Status
Notification: Audible and Visual
Settings: Full Storage, Low Battery, and Sensor Disabled
Range: Pulse Rate (30-350bpm), SpO2 (0-100%)
Alarm Intensity Level 0-85dB
Range, Accuracy, and Resolution SpO2
Measurement Ranges 0-100% Pulse Rate 30-350bpm APR 0-150bpm ETCO2 0-20% (0-150mmHg) SpO2 Measurement Accuracy 70-100% (±2%), <70% unspecified Pulse Rate ±2bpm/±2% maximum acquisition ETCO2 ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0% CO2 (at BTPS) RESP ±1 rpm SpO2 Resolution 1% Pulse Rate 1bpm ETCO2 0.1 mmHg RESP 1 rpm Electrical AC Requirements 100-240VA, 47-63Hz Power Consumption 20VA Batteries Types Alkaline/Ni-Mh batteries, IEC: LR6 Operating Time ≥20 hours without ETCO2; ≤10 hours with ETCO2 Charging time ≤ 6 hours Environment Operating temperature 0-45℃ Storage temperature -20-60℃ Operating humidity 30-95% Operating altitude -500-5000m Trends Types : Tabular Memory: Total 120 hours of event data storage. Data and time storage, alarm conditions, pulse rate and SpO2 measurements. Standards and Certification IEC 62366: Medical devices – Application of mechanical usability to medical devices IEC 62304: Medical device software life cycle processes Directive 93/42/EEC: on Medical Nutrition European Medical Device Directive ISO 13485: Medical equipment – Quality management system EN ISO 14971: Medical devices – Risk management EN 60601-1: Medical electrical equipment EN 60601-2: Medical electrical equipment EN 60601-8: Medical electrical equipment EN 980: Symbols for use in the labelling of medical devices EN 1041: Information to be provided by the manufacturer of medical devices ISO 80601-2-61: Medical electrical equipment – Particular requirements for the basic safety and essential performance of pulse oximeter equipment for medical use use EN ISO 10993-1: Biological evaluation of medical devices EN ISO 10993-5: Biological evaluation of medical devices EN ISO 10993-10: Biological evaluation of medical devices
ISO 14155-1: Clinical research of medical devices
CE COMPLIANCE WITH EUROPE
SFDA State Food and Drug Administration
Standard SideStream configuration
- Main unit of portable UT100C
- Adult Finger Clip SpO2 Sensor

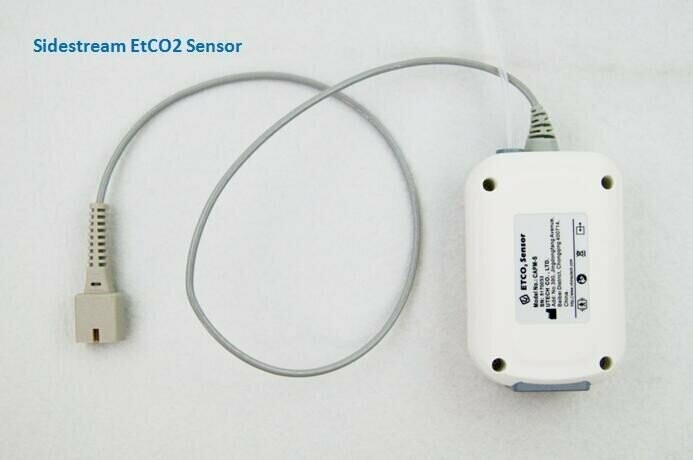

- Lateral flow ETCO2 sensor
- Nasal sampling line
- Gas sampling line
- Gas dryer line
- T-fitting pipe
- Sideflow adapter
- Adapter cable
- Hanging strap
- Protective cover
- User manual
Optional accessories:
- Carrying bag
- ODMS (Oximetry Data Management System)
- Rechargeable Ni-NH batteries
- Alkaline cells/batteries
Warranty:
Main unit 2 years
Accessories 6 months
