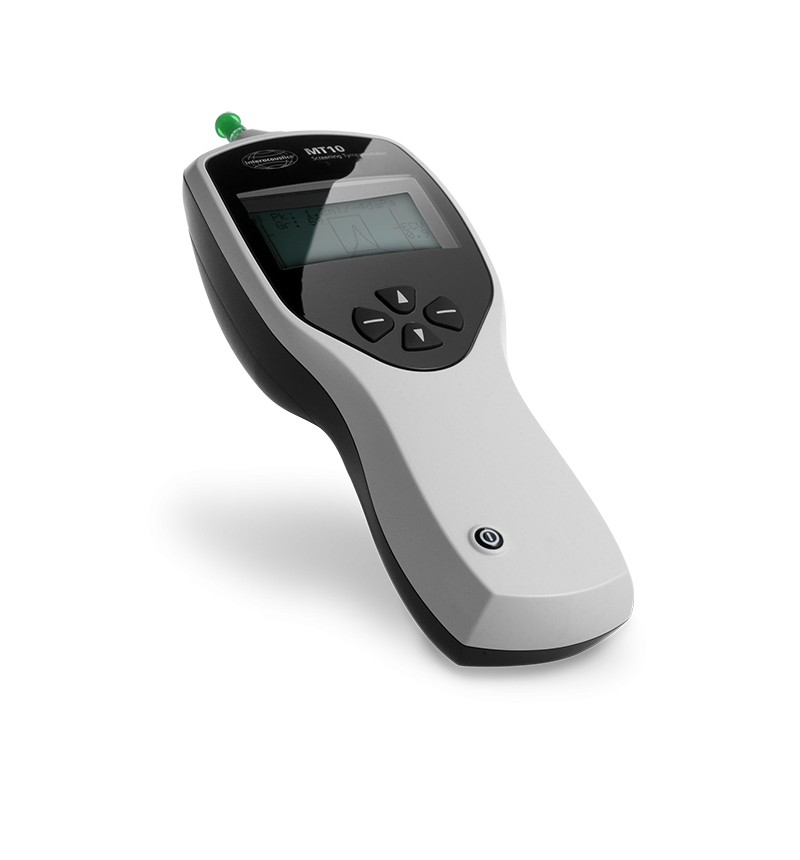

Portable tympanometer MT 10 with IPSI-REFLEX

Brochure: MT 10 Brochure

Features:

Ipsilateral Acoustic Reflex: four different reflex tests at 500, 1,000, 2,000,4,000 Hz can be performed per ear using either fixed or automatic volume selection. The test is performed at the correct pressure level and the actual reflex characteristics are displayed on the screen for the operator to view and interpret.

Memories: the MT10 can store test results for up to 30 patients. This makes it possible to examine a large group of patients and print the data at a later time.
PC integration: full data transfer to a PC via optional USB infrared interface and software. Supplied with handle, set of 139 disposable ear tips (mixed sizes) and 4 batteries.
Built-in software in English

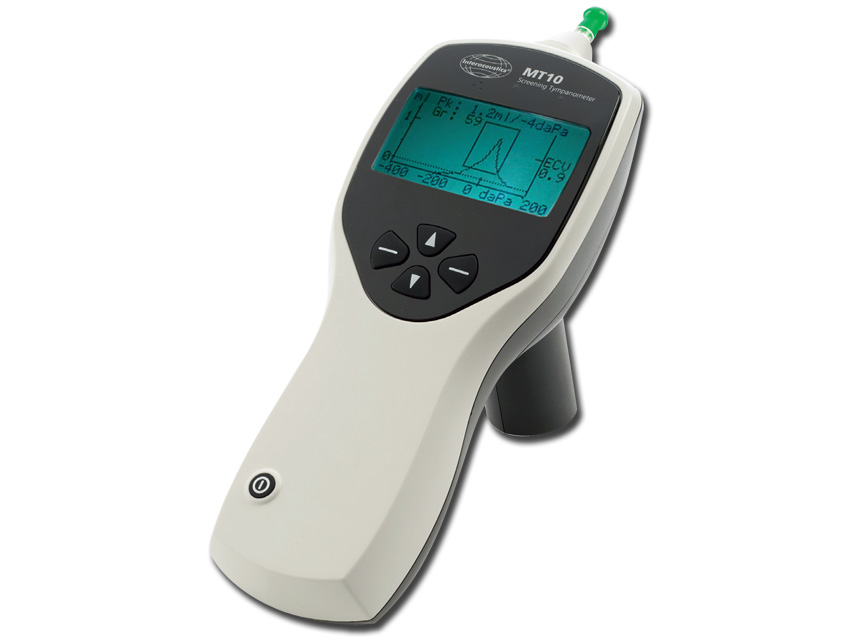

The MT10 is ergonomic to hold, but also offers the option of using the included handle to make it even more stable and lightweight, as it can rest on your hand during measurement.
Size: 19 x 8 x 4 cm excluding the tip (length with tip 22.5 cm)
Weight: 285 g without battery

Technical characteristics:

• • Analysis performed: Peak compliance, peak pressure, slope. equivalent volume of the auditory canal

• • Trace tone: 226 Hz

• • Pressure levels: +200 daPa to -400 daPa

• • Ear volume measurement range: 0.2 ml to 5 ml

• • Scan speed: Typically 200-300 daPa/sec. depending on the volume of the ear and the cavity

• • Pressure limits (safe shutdown): +600 to -800 daPa

Data management

• • Data storage: 30 records. Any recording can be saved once the tympanogram is viewed

• • Data stored: Patient initials, Tympanogram and reflex graphs and analysis for the left and/or right ear, Time and Date of recording, which ears were tested, whether or not the recording was printed and sent to a computer, parameters printed and/or sent to a computer, parameters used for analysis

Other data

• • Internal backup: >30 days without main batteries installed

• • Battery life: Approx. 400 tests (AA alkaline batteries)

• • Supported printer: Martel MCP8830 or Sanibel MPTII

• • Interface: Infrared, IrDA hardware, 9600 baud

• • Printed information: Space for patient and clinician details, Tympanogram analysis parameters, Tympanogram, Reflex analysis parameters, Reflex graph, Device N. N., Last and Next Calibration Due Dates

• • Safety standards: IEC 60601-1. EMC: IEC 60601-1-2

• • Impedance standard: lEe 60645-5, Tympanometer type 2
