Ultrasound B&W Chison 12“ LED ECO 3 Expert + doppler without head

Brochure: Chison-ECO3-Brochure-EN

Image editing:

• • composite image

• trapezoidal

• list-style-type: none;”>
  • I-image intelligent image optimization

• • THI (Tissue Aesthetic Imaging)

• SRA (Sensor Reduction Algorithm)

• Color

• • Full digital beam format

• AIO (automatic image optimization)

• Full screen display

• < square;”>
• automatic PW detection (Doppler function for detecting blood flow velocity)

User interface:

• • folding control panel and alphanumeric keyboard

• • backlit keyboard for good visibility in a dark room

• • configurable backlight

• • lighted lights indicate activated keys

• • 8 TGC (time gain compensation) positions for easy adjustment

• • shortcut button for quick adjustment (user-defined)

• • Good and clear keyboard layout, so the doctor can easily remember

• • predefined mode configurable by each user

Improved workflow with a 6-in-1 button for:

1. Select desired application from automatic preset
2. Optimize image automatically (AIO)
3. Run report
4. Save still image and CINE loop
5. Measure
6. Print to PC printer (laser or inkjet) or video printer

EASYVIEW™ archiving system:
– image archive on hard disk and USB portable storage media
– 3 USB ports
– image format: BMP, JPG, DCM, CIN, avi
– review repeat: automatic, manual (auto-result section can be set) for 2D, M, PW doppler images
– memory capacity (256 frames / 10 seconds)

Technical specifications:

• • Dimensions: 33.5 x 15.5 x h 35 cm (13.2″ x 6.1″ x h 13.8″)

• • Weight: 6 kg

• • Display: 12″ LED, high resolution 1024 x 768

• Lithium battery Li-ion

• • Power: AC 100-240 V – 50/60 Hz

• • Software (user-switchable language): GB, IT, FR, ES, DE, CZ, TR, CN, ΕS

• • User manual: English

Main components:

• • 12″ High Resolution Black and White LED Screen

• • 8G Memory Card

• • • Hot Key

• • Connect a computer printer

• • 3 USB ports

• • 1 ethernet port

• • 1 video output port, 1 VGA output port

• • 1 port footswitch

• • Full screen display

• • Charger

• • Standard software package

• • Easy View image archiving system

• • THI

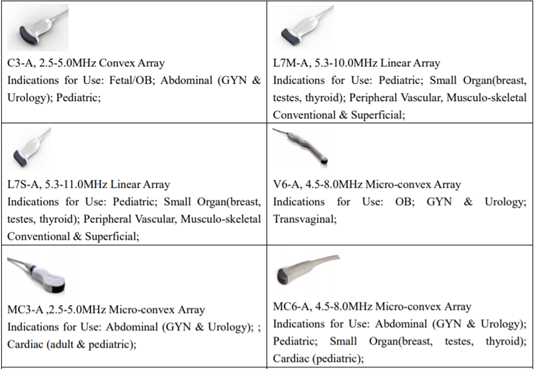

Heads:
